LED Down lighting > product

· Provides high luminous intensity and uniform light by direct method

· Doesn't dazzle

· Low temperature maintenance by heat dissipation system

· Eco-friendly products [mercury-free, lead-free, cadmium-free]

· Long life [50,000Hr] to reduce replacement and maintenance costs

· Wide voltage design

· To replace the existing three-wavelength lamp (EL)

Installation case

Product Information

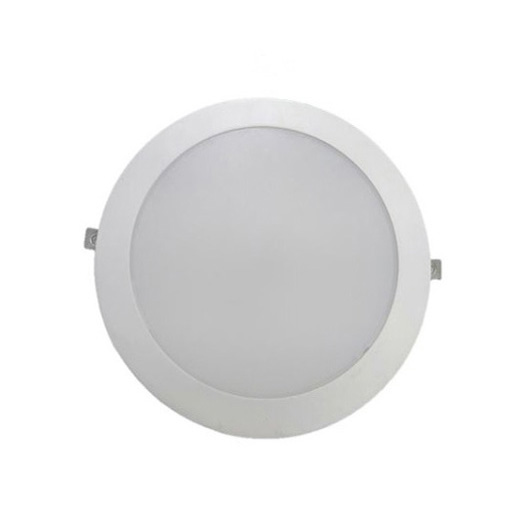

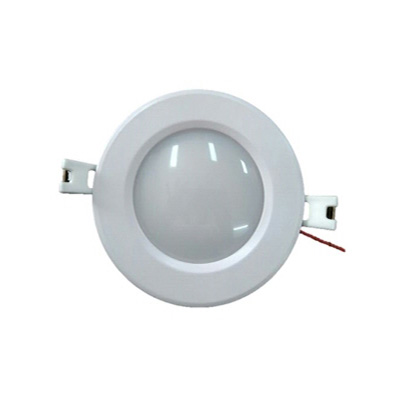

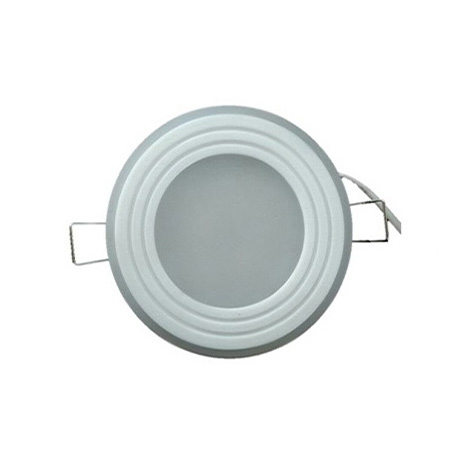

Model No	①HN-DL82057E	②HN-DL83557E	③HN-DL30530E	④HN-DL30557ES	⑤HN-DL30557E
Power consumption (W)	20	35	5	5	5
Input voltage (V)	220	220	220	220	220
Luminous flux (lm)	2,100 ↑	3,675 ↑	500 ↑	500 ↑	500 ↑
Light efficiency (lm/W)	105 ↑	105 ↑	100 ↑	100 ↑	100 ↑
Power factor(%)	0.9 ↑	0.9 ↑	0.9 ↑	0.9 ↑	0.9 ↑
Color rendering (Ra)	80 ↑	80 ↑	80 ↑	80 ↑	80 ↑
Color temperature	5,700	5,700	3,000	5,700	5,700
Item identification number	23616240	23616239	23725700	23725699	23725685
